Humbucker Telecaster Wiring Kit

$49.95$69.95

  • (2) CTS Solid Shaft Shaft Pots – 500K
  • (1) Premium 3-Way Switch
  • (1) Switchcraft 1/4″ Mono Input Jack
  • (1) 0.022uf Tone Cap (Choose between the Orange Drop, Dijon Yellow, and Vitamin T)

Description

Our 3-Way tele kits are a great upgrade to your tone, reliability, and life of your guitar!

Our Drop-in Wiring Kits for Telecaster-style guitars are built with premium components that are meticulously crafted for great consistency and even taper on both the volume and tone knobs, offering better control when rolling down the volume knob without any muddiness. Our pots are hand metered and matched for optimal performance, and the Sprague Orange Drop capacitors produce a vintage sound that has been praised by guitar enthusiasts. Our kits are expertly wired by hand, with great attention to detail both sonically and visually, ensuring they will perform great and last a long time.

This Telecaster Drop-In Wiring Kit for Telecaster-style guitars with 2 humbucker pickups is designed to fit most American Fender Teles with no modification required, but if you are purchasing the Reverse control plate kit, please see install notes below.

The assembly is wired with 22 AWG vintage push-back wire, giving it a vintage look and sound. The soldered connections to the input jack are insulated with heat-shrink to ensure durability and long life. However, if you are installing this assembly on an import guitar with metric-sized pots, you may need to drill out your control plate holes to accept the slightly larger US-spec pots and buy US-spec knobs.

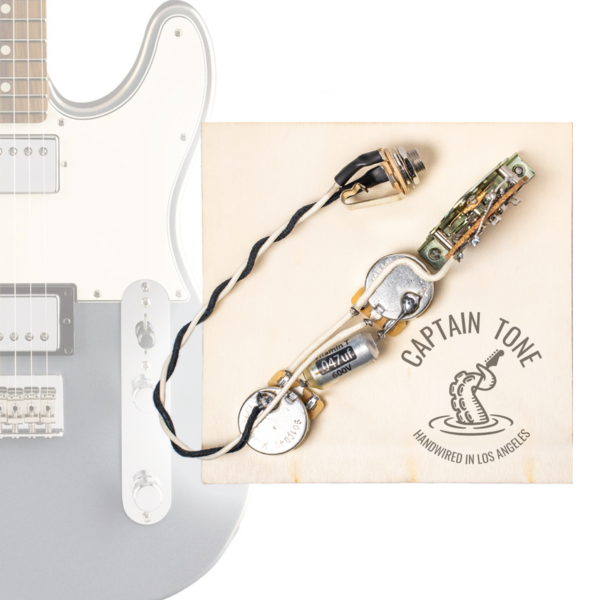

The kit includes two CTS solid shaft pots, an Oak Grigsby 3-way switch, a Switchcraft 1/4″ mono input jack, a 0.022uf Sprague Orange Drop Capacitor  (0.047uf are used with 250K-Ohm Pots Option), and a wiring diagram. Please note that the control plate, switch tip, or knobs are not included.

Our drop-in kits are built and spaced for use on standard USA Fender-style Tele control plates, with a center-to-center distance of 2.50 inches between the volume and tone pots. However, import guitar’s control plates may be spaced differently.

Includes

  • (2) CTS Solid Shaft Shaft Pots – 500K
  • (1) Premium 3-Way Switch
  • (1) Switchcraft 1/4″ Mono Input Jack
  • (1) 0.022uf Tone Cap (Choose between the Orange Drop, Dijon Yellow, and Vitamin T)
  • (1) Treasure Map (Wiring Diagram)

*For the Reverse Control Plate Setup, please note that the volume, tone, and 3-way switch are arranged in a parallel layout to the bridge pickup for players who like to use their volume knob frequently for swells and more overall control. Due to the nature of flipping your controls, you may have to modify your existing cavity route by lengthening the area underneath the control plate to fit the reverse control layout. Please purchase the Reverse Control Plate version of our Telecaster Drop-in Wiring Kit instead if you plan to reverse your control plate. *

**Control Plate, Switch Tip or Knobs Not Included**

Additional information

Weight .5 lbs
Dimensions 6 × 6 × 2 in
Tone Capacitor

Orange Drop, Dijon Yellow, Vitamin T
